Adkins Inline / Compact - Does not switch on

Modified on Tue, 15 Jul at 3:37 PM

If your machine becomes unresponsive when you press the power button, follow these checks to identify and resolve the issue.


1. Inspect the Main Power Cable Connection

Ensure the cable is seated correctly and free of damage:

  • Plug one end of the power cable directly into a wall socket. You must not use an extension lead for this machine.
  • Push the other end firmly into the machine’s inlet until the red securing tab clicks into place.
  • Inspect the cable for cuts, frays or kinks—replace if any damage is found.

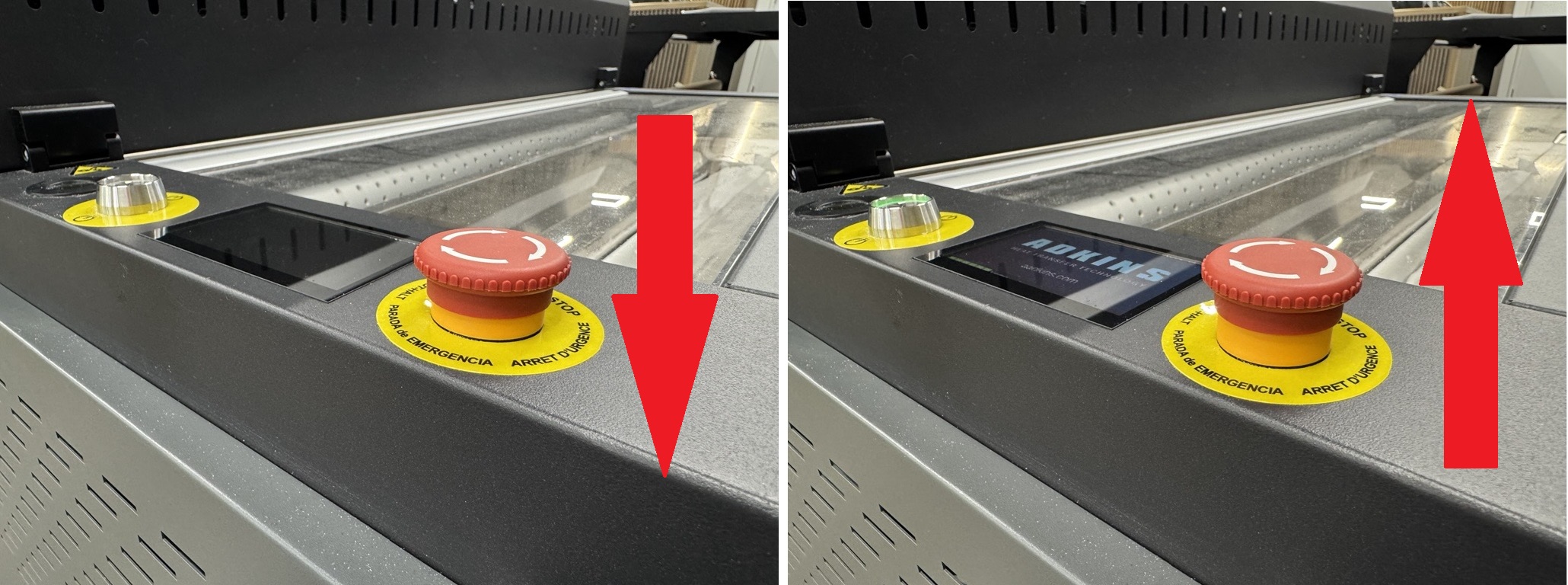

2. Check that the emergency stop button is disengaged

Your machine’s safety interlock may be engaged, preventing startup:

  • Locate the red emergency-stop button next to the screen and power switch.
  • A raised button indicates it’s disengaged; a depressed button means the machine will refuse to power on.
  • To reset, rotate the button clockwise about 90° until it springs back up.
  • Once released, the machine should be able to power on normally



3. Confirm the Main Power Supply Is Switched On

Check that power is actually reaching the socket:

  • If the wall outlet has its own switch, make sure it’s turned on.
  • Test the socket with another device (for example, a lamp) to confirm it’s live.


4. Check the Machine’s Power Switch

Make sure the machine’s own switch is operating:

  • Press the power switch on the machine; it should light up when power is flowing.
  • If it does not illuminate, turn it off and on again.


5. Inspect and Replace Blown Fuses (if applicable to your model)

Two fuses may need checking—the plug fuse and the machine’s internal fuse:


Fuse Location

Rating

Replacement Steps

Plug head (UK)

13 A

1. Unplug and open the plug casing with a screwdriver.
2. Swap out the old fuse for a new 13 A fuse of the same type.
 3. Close the casing securely.

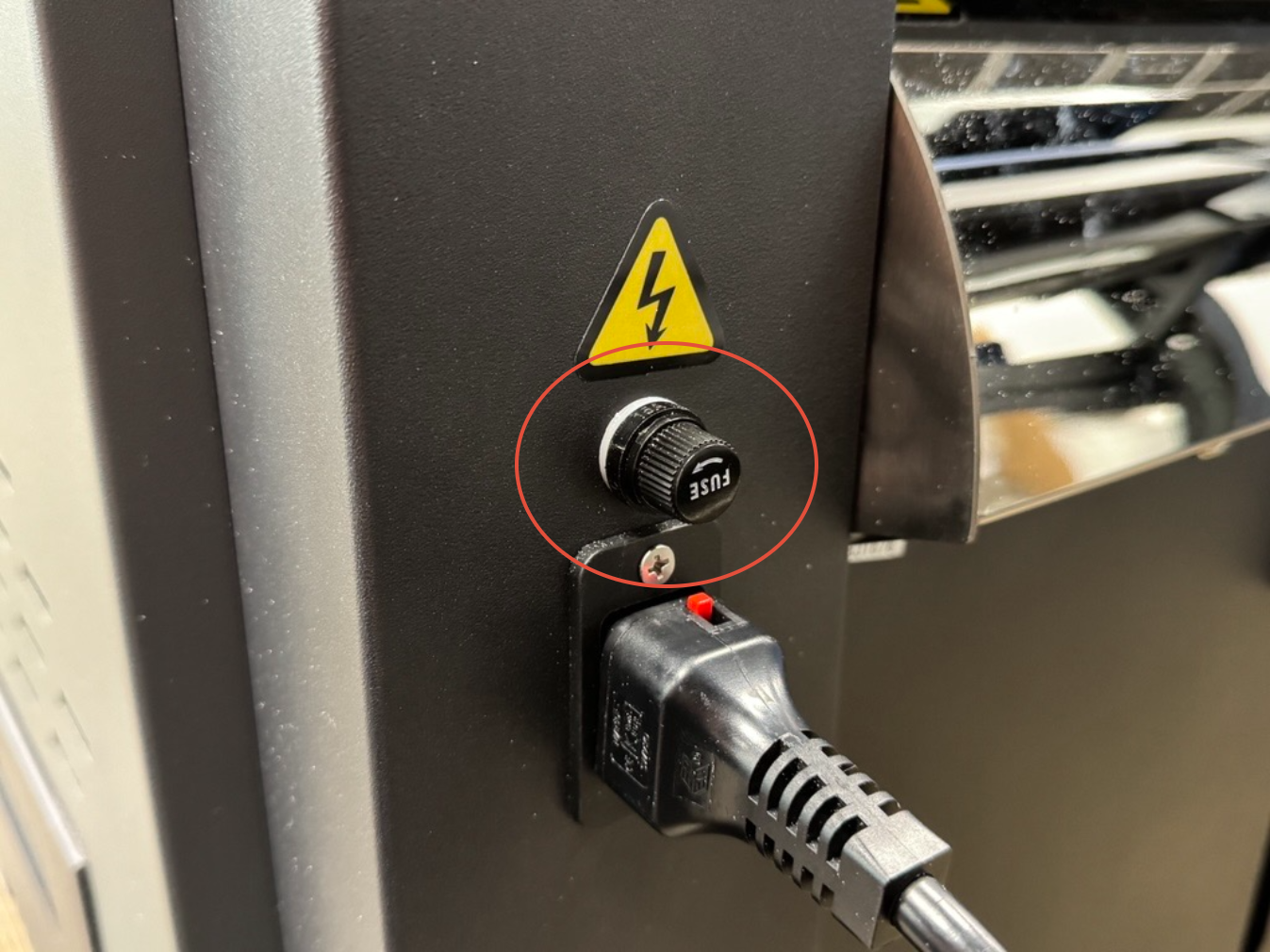

Machine fuse holder

15 A

1. Turn off and unplug the machine.
2. Open the fuse holder shown below.
3. Replace the blown fuse with a 15 A spare.
 4. Close the cover and power on.

Additional Tips

  • Always unplug the machine before handling fuses.
  • Use replacement fuses matching both rating and type exactly.
  • Keep spare fuses and your user manual in an accessible place.


6. Check the Mains Circuit Breaker

Locate and inspect the breaker that feeds the outlet your machine uses:

  • Find your building’s breaker panel and identify the circuit labelled for that outlet.
  • Ensure the breaker switch is fully in the ON position.
  • If it’s in the middle or OFF, switch it off fully, then back on to reset.
  • If the breaker immediately trips again (with the Adkins equipment unplugged), there’s likely an overload or short circuit on that line. In this case, stop attempting resets and consult a qualified electrician.


You can find the User Manual for your machine on the Adkins website or click here.

If you are still having issues, please contact your Adkins Dealer for support.
